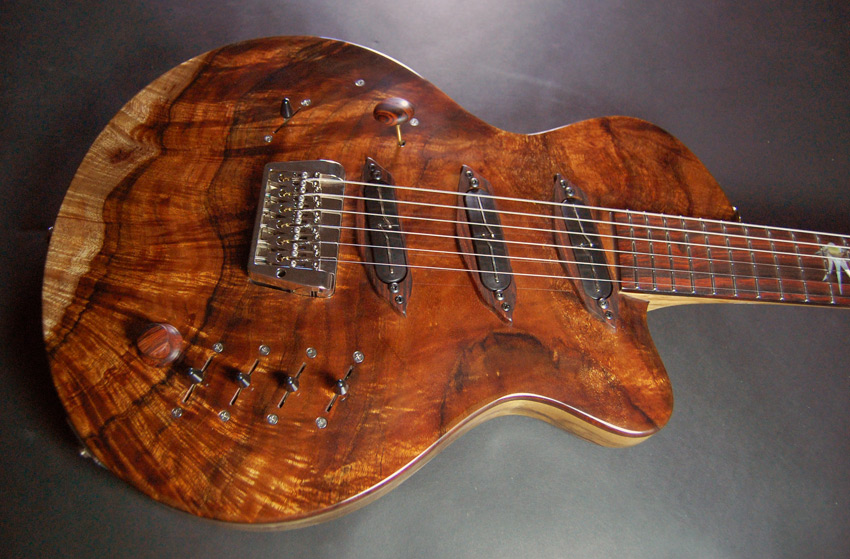

2014 Custom #140

Top: Koa
Body: Black Limba
Neck: Black Limba
Fretboard: Cocobolo wit figure
Headstock Veneer front/back: Koa/Koa
Pickup Rings: Cocobolo
Knobs: Cocobolo

Scale Length: 25"
Fretboard radius: compound 9.5" - 14"
Frets: 22 stainless steel
Nut width: 1-11/16"
Neck carve: Soft v-carve like Fender Classic 1950's Strat

Pickups: Lindy Fralin Split Blade BLues single coil set

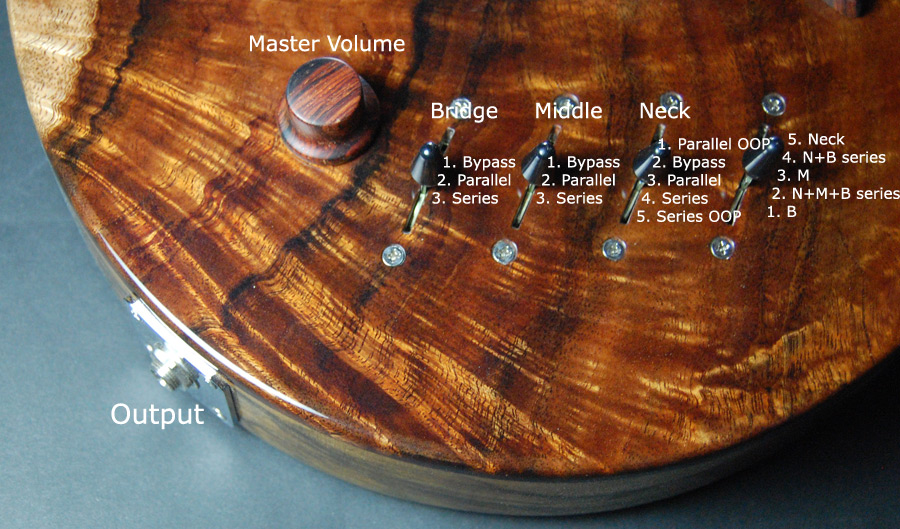

Switching:
    Master Volume, 5-way

    For each Pickup:
       3-way (1. Off, 2. Parallel, 3. Series)

    5-way:
      1. Bridge
      2. Bridge + Middle + Neck (in series)
      3. Middle
      4. Neck + Bridge (in series)
      5. Neck

Additional Electronics: LinkLever mechanism (palm controlled vol/tone lever)

    Switches for LinkLever:
       3-way (1. Disconnected, 2. Volume, 3. Tone)
       Internal 2-way (1. Clockwise, 2. Counterclockwise)


Logo: Pearl
Inlay: Pearl
Side dots: Pearl
Strap buttons: Dunlop StrapLok
Bridge: Skyway tremolo in Nickel
Tuners: Sperzel TrimLock open back in Nickel wood buttons in Koa
Finish: Nitrocellulose lacquer
