2011 Custom Scorpion #121




Control layout

Custom Myka dual humbucker 6/2 blade pickups


















































2011 Custom Scorpion #121

Top: Old Curly Redwood Body: Korina in Offset Dragonfly style
Neck: Korina with Custom Headstock shape
Fingerboard: Ebony
Headstock Front/Back: Ebony/Korina

8-string neck (6-string guitar/2-string bass)

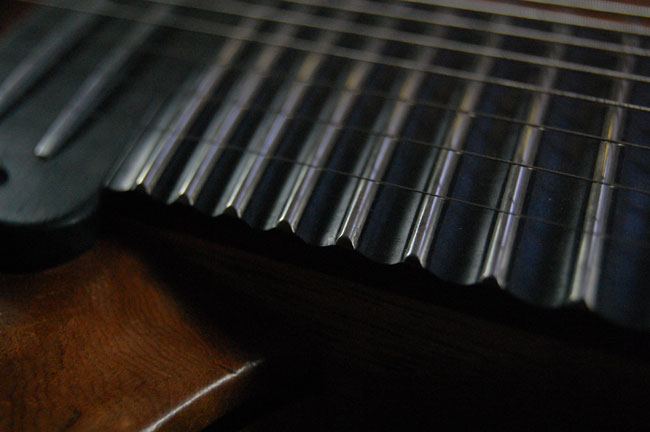

Fingerboard: Ebony (scalloped)

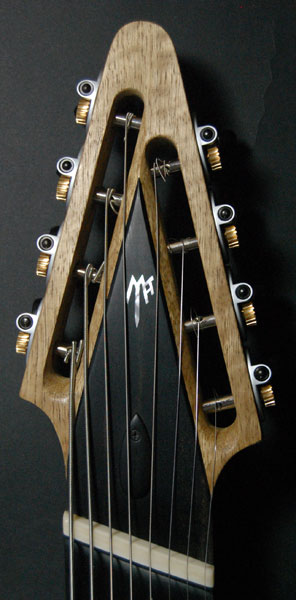

Headstock Front/Back: Ebony (Triangle shape on front)
Scale Length: Multi-Scale (27" - 24.5")
Fretboard radius: 20"
Neck Carve: Custom
Frets: 27

Pickups: Custom Myka Dual 6/2 Humbucker pair, GraphTech piezo X 2, GraphTech hexaphonic

Electronics: This is essentially a 5 channel instrument. The 2-string and 6-string magnetic pickups are spearate although the 5-way controls them both.

2-string: Master volume, master tone, 5-way, internal piezo volume
6-string: Master volume, master tone, 5-way, internal piezo volume
Hexaphonic: Hex Volume, patch select, synth/both/mag switch
Outputs: Stereo 2-string magnetic (tip) and piezo (ring), Stereo 6-string magnetic (tip) and piezo (ring), 6-string hexaphonic (13-pin)

5-way Switching (clockwise):
Position 2-String 6-String
1 Neck and Bridge Neck and Bridge
2 Neck Neck
3 Bridge Neck
4 Neck Bridge
5 Bridge Bridge
Knobs located on back of body, upper bout



Hardware: Nickel/Ebony
Logo: Pearl
Side dots: Pearl
Tuners: Shertler Satin with Ebony knobs
Finish: Violin varnish and wax
