Color Samples

The body cut to shape:

The body, neck black, headstock veneer, and fingerboard:

The neck ready for the carbon fiber to be installed:

The neck with carbon fiber installed:

The neck with truss rod installed and headstock veneers:

The headstock routed:

A naturally black ebony fingerboard:

Side view of the neck (look at that grain and color!):

Here is a top view of the guitar so far:

The top carved:

Control cavity routed and cover made:

You can see the slight modification in shape for the 24 fret neck

Headstock inlay:

Calvary swords inlay:

Guitar so far:

The neck and inlay pictures:

Body almost done, neck pocket routed:

Test fit before finishing (balances sweet!):

Final bridge pictures:

Those are sterling silver eyelets where the strings come through.

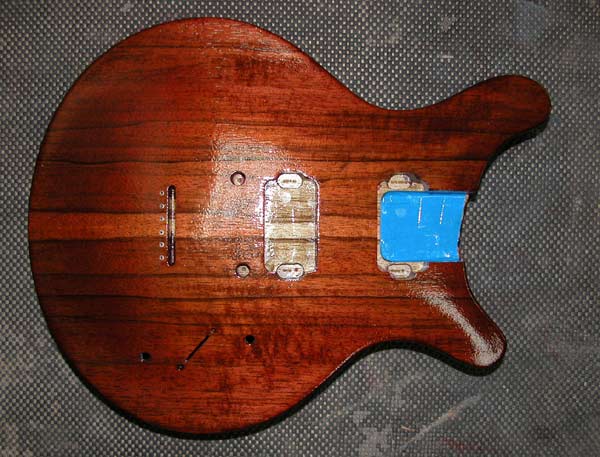

The body stained and lacquered:

Double Cut #028

Body: Black Limba
Neck: Cocobolo
Fingerboard: Ebony
Scale Length: 25"
Frets: 24

Pickups: Rio Grande Texas/BBS humbucker set
Switching: 5-way, 1 Volume, 1 Tone (push/pull for series/parallel):
  1. Neck Humbucker series/parallel
  2. Inner Coils series/parallel
  3. Neck and Bridge Humbuckers series/parallel
  4. Outer Coils series/parallel
  5. Bridge Humbucker series/parallel

Neck angle: 3 degrees
  Bridge: TonePros tune-o-matic and stop tailpiece
  Tuners: Chrome Sperzels

  Body: Nitrocellulose Lacquer
