2004 Double Cutaway #010

Body: Curly Black Limba
Neck: Bolivian Rosewood (aka Marado, Pau Ferro) Top: Quilted Maple
Fingerboard: Brazillian Rosewood
Binding: Indian Rosewood with 5-ply wood purfling
Scale Length: 25"

Pickups: Handowund Jason Lollar Imperial humbuckers
Switching: 5-way, 1 Tone, 1 Volume with series/parallel push/pull
  1. Neck Humbucker series/parallel
  2. Inner Coils series/parallel
  3. Neck and Bridge Humbuckers series/parallel
  4. Outer Coils series/parallel
  5. Bridge Humbucker series/parallel

Neck angle: 3 degrees
  Bridge: TonePros tune-o-matic with ebony tailpiece

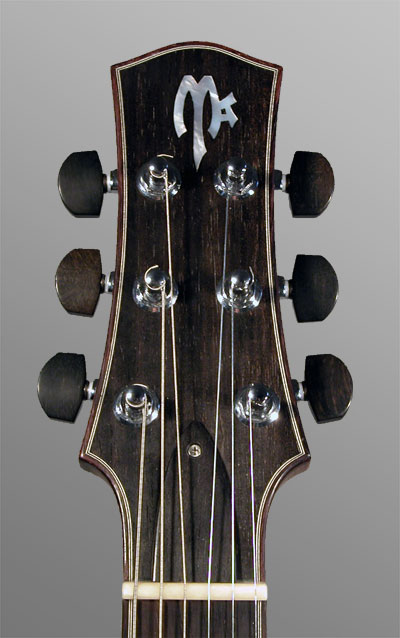

  Tuners: Schaller M6's with Ebony Keys

  Body: Nitrocellulose Lacquer
  Neck: Nothing but bare wood for that rosewood feel!

Click here for process pictures.
